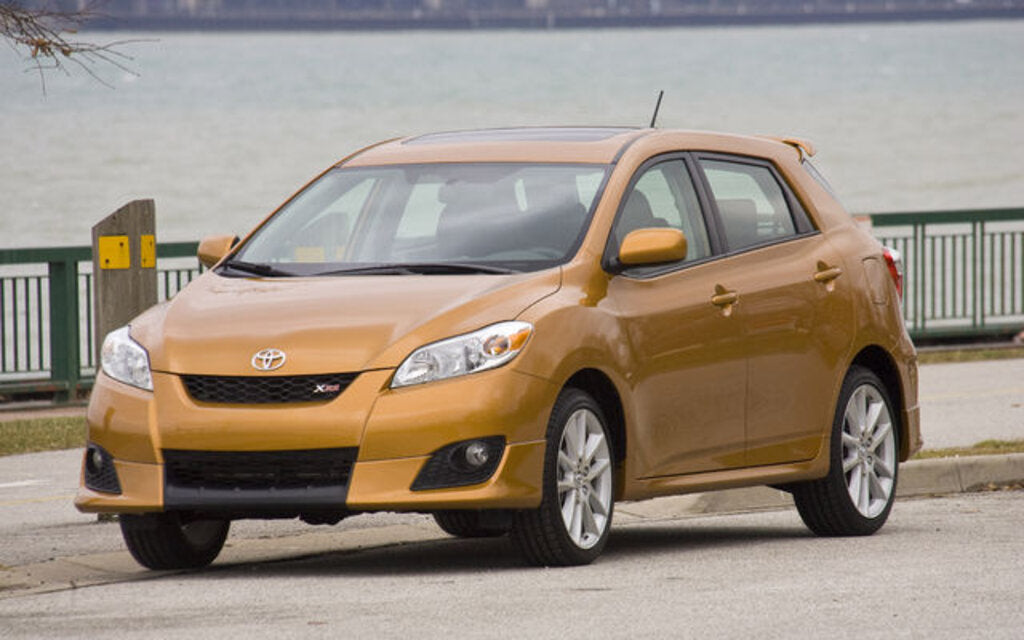

The Toyota Matrix, produced between 2009 and 2010, is a compact hatchback that blends versatility with Toyota’s well-known reliability. Still, with age and mileage, the engine may eventually need replacement due to wear, overheating, or failure. Swapping the engine is a challenging but worthwhile project that can breathe new life into your Matrix. This step-by-step guide will walk you through the process. At Power Engines, we supply OEM-quality, road-legal replacement engines designed specifically for the Toyota Matrix, ensuring durability and compliance.
Preparation and Tools Required
Before beginning, gather the right tools: an engine hoist, hydraulic jack, jack stands, socket and wrench sets, torque wrench, screwdrivers, pliers, and drain pans. You’ll also need fresh fluids such as engine oil, coolant, and transmission fluid. Always park the vehicle on level ground, disconnect the battery, and allow the engine to cool before starting.
Step 1: Remove the Hood and Drain Fluids
Unbolt and remove the hood to provide maximum clearance. Drain all fluids, including engine oil, coolant, and transmission fluid, into approved containers. Proper fluid disposal ensures a safer and cleaner workspace.
Step 2: Disconnect Wiring, Sensors, and Fuel Lines
Label and disconnect all electrical wiring harnesses, sensors, and vacuum hoses. Relieve the pressure in the fuel system, then disconnect the fuel lines. Taking photos can simplify the reassembly process.
Step 3: Remove Accessories and Cooling Components
Detach the alternator, starter motor, A/C compressor, and power steering pump. If possible, leave the A/C and steering pumps attached to their lines and secure them aside. Remove the radiator, cooling fans, and hoses to create space for engine removal.
Step 4: Disconnect Exhaust and Transmission
Unbolt the exhaust manifold from the catalytic converter or downpipe. Support the transmission with a jack and remove the bolts connecting it to the engine block. For automatic models, disconnect the torque converter bolts. For manual models, remove the clutch assembly.
Step 5: Remove Motor Mounts and Extract the Engine
Unbolt the motor mounts. Attach the engine securely to a hoist and carefully lift it from the bay. Double-check that all wiring, hoses, and lines are fully disconnected before extracting the engine.
Step 6: Prepare the Replacement Engine
Transfer necessary components such as the intake and exhaust manifolds, sensors, and brackets from the old engine to the new one. Replace seals, gaskets, and belts during this stage to ensure long-term reliability. At Power Engines, our replacement engines for the Toyota Matrix are built to OEM standards and are emissions compliant, making installation smooth and worry-free.
Step 7: Install the New Engine
Lower the new engine into the bay with the hoist, aligning it with the transmission and motor mounts. Torque all bolts to Toyota’s specifications. Reconnect the transmission, exhaust system, and accessory components.
Step 8: Reconnect Wiring, Fuel, and Cooling Systems
Reinstall wiring harnesses, fuel lines, vacuum hoses, and sensors according to your labels or photos. Refit the radiator, fans, and coolant hoses. Refill the system with fresh fluids: oil, coolant, and transmission fluid.
Step 9: Test and Break-In
Reconnect the battery and switch the ignition to ON to prime the fuel system. Start the engine and allow it to idle, checking for leaks, unusual noises, or dashboard warning lights. Allow the engine to reach normal operating temperature. For the first 500 miles, avoid heavy acceleration or high RPMs. Perform an oil change after the break-in period to ensure maximum longevity.
Replacing the engine in a Toyota Matrix (2009–2010) is a detailed process that requires patience and precision, but it’s well worth it for the added reliability and performance. By sourcing a replacement from Power Engines, you ensure your new engine is road-legal, emissions compliant, and built to OEM standards. With the right parts and careful installation, your Matrix will be ready for many more years of dependable driving.
