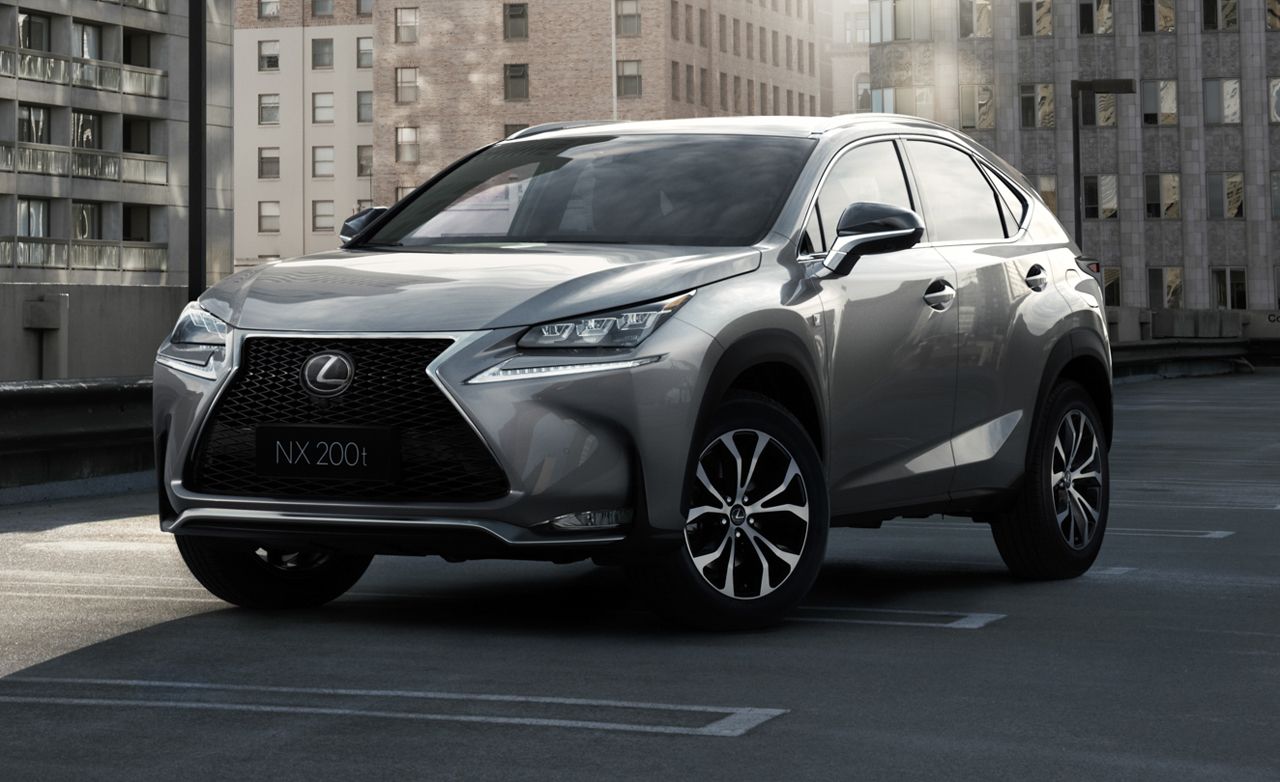

The Lexus NX200t, produced between 2015 and 2017, is a luxury compact SUV that blends refined comfort with sporty performance. Its turbocharged engine delivers power and efficiency, but like all vehicles, it may eventually require replacement due to high mileage, internal failure, or major mechanical damage. Replacing the engine can restore your NX200t’s performance and extend its lifespan. This guide provides a detailed step-by-step breakdown of the process. At Power Engines, we supply OEM-quality, road-legal replacement engines built for Lexus models, ensuring durability, compliance, and a seamless fit.

Preparation and Tools Required

Before beginning, gather essential tools: an engine hoist, hydraulic jack, jack stands, full socket and wrench sets, torque wrench, pliers, screwdrivers, and drain pans. Replacement fluids such as engine oil, coolant, and transmission fluid are required. Park the NX200t on a level surface, disconnect the battery, and allow the engine to cool completely before starting work.

Step 1: Remove the Hood and Drain Fluids

Unbolt and remove the hood for easier access. Drain the engine oil, coolant, and transmission fluid into approved containers. This step keeps the workspace safe and prevents contamination during reassembly.

Step 2: Disconnect Wiring, Sensors, and Fuel Lines

Label and disconnect all wiring harnesses, sensors, and vacuum hoses. Relieve pressure in the fuel system and disconnect the fuel lines. Taking photos of each connection can help ensure accurate reassembly.

Step 3: Remove Accessories and Cooling Components

Detach the alternator, starter motor, A/C compressor, and power steering pump. Many of these can be set aside in the bay without disconnecting lines. Remove the radiator, intercooler, cooling fans, and all associated hoses to make space for engine removal.

Step 4: Disconnect Exhaust and Transmission

Unbolt the exhaust manifold from the turbocharger and catalytic converter. Support the transmission with a jack or stand, then remove the bolts securing it to the engine block. Automatic NX200t models require disconnecting torque converter bolts during this stage.

Step 5: Remove Motor Mounts and Lift Out the Engine

Unbolt the motor mounts on both sides. Secure the engine to a hoist using proper lifting points, then carefully lift it out of the bay. Double-check that all connections are free before fully extracting the engine.

Step 6: Prepare the Replacement Engine

Transfer necessary components such as the turbocharger, intake and exhaust manifolds, sensors, and brackets from the old engine to the new one. Replace seals, gaskets, and belts during this step. At Power Engines, our Lexus-compatible replacement engines are engineered to meet OEM specifications, ensuring emissions compliance and perfect fitment.

Step 7: Install the New Engine

Lower the replacement engine into the bay with the hoist, aligning it with the motor mounts and transmission. Torque all bolts to factory specifications. Reattach the transmission, exhaust, and accessories.

Step 8: Reconnect Wiring, Fuel, and Cooling Systems

Reinstall wiring harnesses, sensors, and fuel lines according to your labels and photos. Refit the radiator, intercooler, cooling fans, and hoses. Refill with fresh fluids including oil, coolant, and transmission fluid.

Step 9: Test and Break-In

Reconnect the battery and switch the ignition to ON to prime the fuel system. Start the engine and let it idle, monitoring for leaks, noises, or warning lights. Allow the engine to reach normal operating temperature. During the first 500 miles, avoid high RPMs and aggressive driving. Perform an oil change after this break-in period to maximize engine longevity.



Replacing the engine in a Lexus NX200t (2015–2017) requires patience, preparation, and precision, but it can restore the luxury performance this model is known for. By following this step-by-step guide and sourcing your replacement engine from Power Engines, you can ensure a smooth installation with an OEM-quality, road-legal solution. With the right engine and careful installation, your NX200t can continue delivering luxury, performance, and dependability for many more years.
