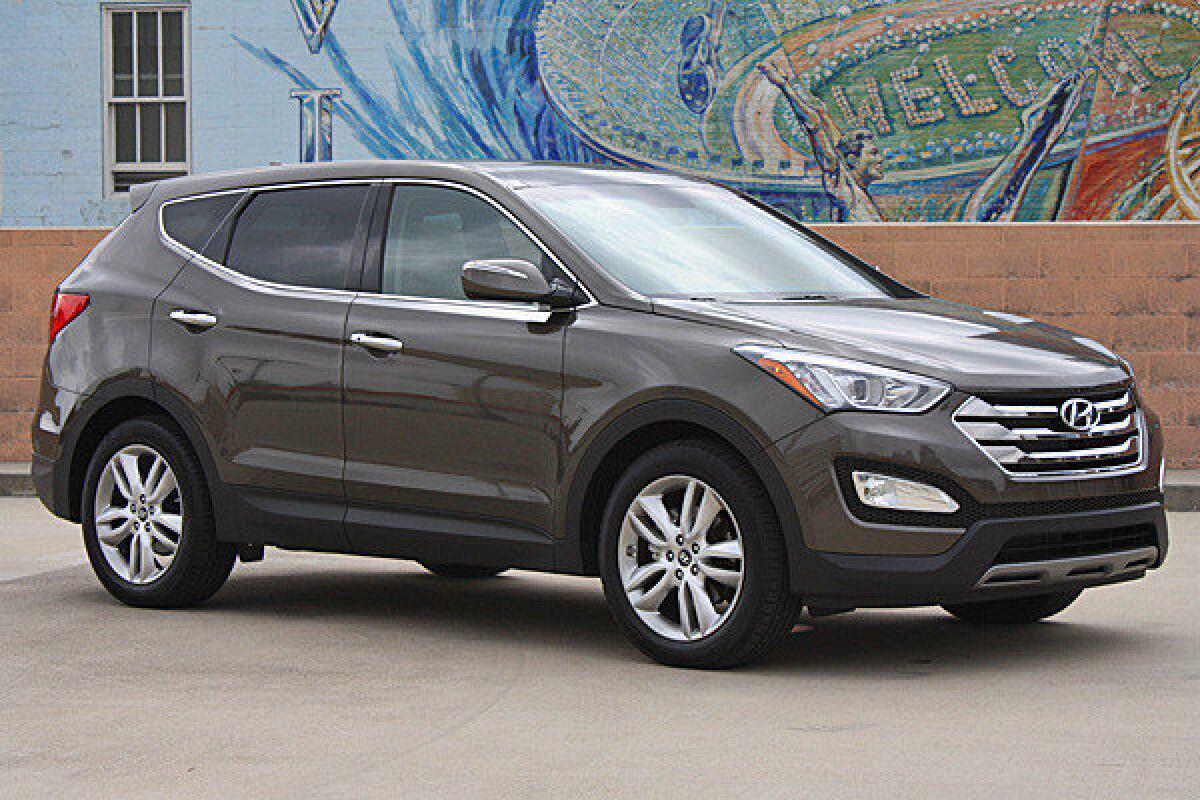

The Hyundai Santa Fe is a popular midsize SUV known for its comfort, features, and family-friendly design. However, with years of use, even reliable engines may fail due to high mileage, overheating, or internal damage. Replacing the engine in a 2013–2016 Santa Fe can restore power and extend the life of the vehicle. This step-by-step guide explains the process in detail. At Power Engines, we supply OEM-spec, road-legal replacement engines built for reliability, making the process more seamless.
Preparation and Tools Required
Before starting the job, gather an engine hoist, hydraulic jack, jack stands, complete metric socket and wrench sets, torque wrench, pliers, screwdrivers, and drain pans. Have new fluids ready, including engine oil, coolant, and transmission fluid. Park the Santa Fe on a level surface, disconnect the battery, and allow the engine to cool completely before beginning.
Step 1: Remove the Hood and Drain Fluids
Unbolt the hood to access the engine bay. Drain all fluids—oil, coolant, and transmission fluid—into safe containers. This step ensures a clean workspace and prevents contamination.
Step 2: Disconnect Wiring, Sensors, and Fuel Lines
Label and disconnect all wiring harnesses, sensors, and vacuum hoses connected to the engine. Relieve pressure in the fuel system, then disconnect the fuel lines. Use photos or labels to track connections for reassembly.
Step 3: Remove Accessories and Cooling Components
Detach the alternator, starter, power steering pump, and A/C compressor. If possible, secure the A/C and steering pumps to the side without disconnecting their lines. Remove the radiator, fans, and hoses to create space for lifting the engine out.
Step 4: Disconnect Exhaust and Transmission
Unbolt the exhaust manifold from the engine and catalytic converter. Support the transmission with a jack or stand, then remove bolts connecting the engine to the transmission housing. Automatic Santa Fe models require disconnecting the torque converter bolts before separation.
Step 5: Remove Motor Mounts and Extract the Engine
Unbolt the motor mounts. Secure the engine to a hoist and carefully lift it out of the engine bay. Double-check that all hoses, wires, and connections are free before extraction.
Step 6: Prepare the Replacement Engine
Transfer key components from the old engine to the replacement, including intake and exhaust manifolds, sensors, and brackets. Replace gaskets, seals, and belts to ensure long-term performance. Power Engines supplies Santa Fe-compatible engines that meet OEM standards and are emissions-compliant, ensuring a direct fit and reliable installation.
Step 7: Install the New Engine
Lower the replacement engine into the bay using the hoist, aligning it with the transmission and motor mounts. Torque bolts to factory specifications. Reconnect the transmission, exhaust, and accessory components.
Step 8: Reconnect Wiring, Fuel, and Cooling Systems
Reinstall wiring harnesses, sensors, fuel lines, and hoses according to your labels and photos. Refit the radiator, cooling fans, and coolant hoses. Fill with fresh engine oil, coolant, and transmission fluid.
Step 9: Test and Break-In
Reconnect the battery and turn the ignition to ON to allow the fuel pump to prime. Start the engine and let it idle, monitoring for leaks, dashboard warnings, or unusual noises. Allow the engine to reach operating temperature. During the first 500 miles, avoid aggressive driving or high RPMs. Change the oil after the break-in period.
Replacing the engine in a Hyundai Santa Fe (2013–2016) requires patience and precision, but when done correctly, it restores the SUV’s dependability and performance. By following these steps and sourcing a high-quality, road-legal replacement from Power Engines, you’ll ensure your Santa Fe continues to serve reliably for many more miles.
