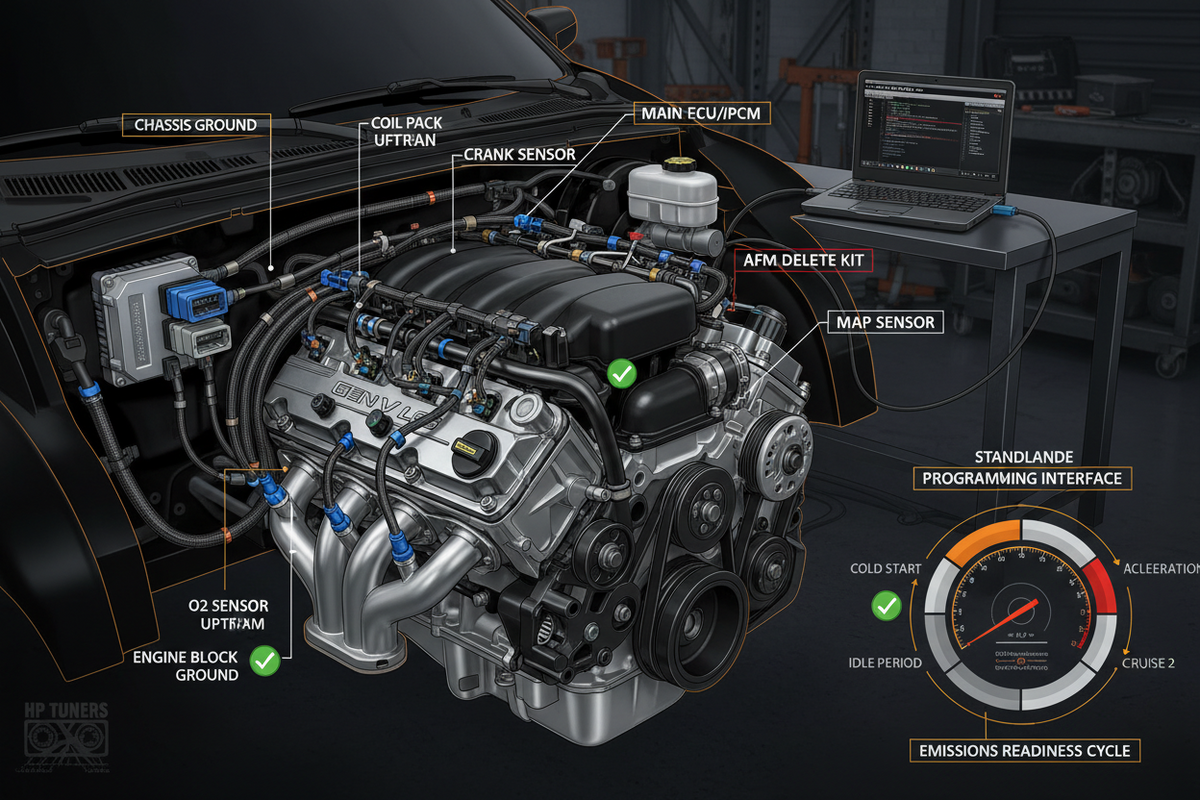

The electrical side of a GMC engine swap is generally one of the more manageable jobs in the US aftermarket for most platforms. GM uses consistent CAN bus conventions, the connector designs are well-documented, and the aftermarket has extensive tool and parts support. Duramax adds diesel-specific complexity. AFM and DFM applications require specific attention during ECU work.
Here's the playbook GM specialists use.
What the GM ECU Is Doing
Modern GMC engines have the engine ECU communicating across the GM CAN bus with transmission control module, ABS module, instrument cluster, body control module, and other systems. For AFM-equipped applications, AFM transition logic is part of the engine ECU programming. For DFM applications, similar logic for the LT-family.
For Duramax applications, the ECU manages high-pressure fuel system, EGR, on emissions-equipped variants DPF regen and SCR systems. Substantial additional complexity vs gasoline applications.
Battery, Grounds, and Power Supply
Replace corroded battery cables. GMC battery locations are typically under-hood, mounted in passenger-side trays.
Three to five ground connections on most modern GMC applications. Clean to bare metal, fresh terminals, dielectric grease, proper torque.
Connector Discipline
GM-pattern connector locks. Primary press-tab plus secondary slide-lock on most applications. Photograph every connector. Label with painter's tape.
For AFM-equipped Vortec applications, identify the AFM solenoid pack connector specifically. If converting from AFM to non-AFM (AFM delete), the solenoid pack connector handling becomes part of the conversion.
For Duramax applications, the additional connectors for injectors, EGR, DPF, SCR, glow plugs all need careful documentation.
The Main Engine Harness Connection
Most modern GMC applications route the engine harness through a firewall bulkhead. Inspect both halves before mating. Confirm visual alignment, then engage locking mechanism.
Year-Mismatched Swap Considerations
For year-mismatched GMC swaps, harness compatibility verification is critical. GM revised connectors and pin assignments multiple times across Vortec and LT-family production runs.
ECU Programming
Same-year same-engine replacement: existing ECU usually accepts the new engine. Clear stored codes, complete drive cycle.
For AFM delete configurations, ECU reprogramming or tune work is required. The ECU needs to know AFM is no longer functional. Tune shops with GM experience handle this routinely.
Year-mismatched same-family swap: ECU may need reprogramming with GM Tech 2, MDI, or capable aftermarket tools.
Cross-platform LS swaps: complete ECU swap is standard, with the donor ECU and harness coming with the engine. Aftermarket standalone ECUs (Holley Terminator, FAST, MS, others) are also common for LS swaps.
Anti-Theft Considerations
GM PassLock and similar anti-theft systems on certain GMC applications require ECU-to-VATS module pairing. After ECU change, pairing must be addressed. Typically a GM dealer or GM-specialist procedure.
The First Crank Procedure
Connect a GM-capable scan tool. Verify sensor data. Pre-prime oil galleries by cranking with fuel pump relay pulled for ten to fifteen seconds. At least 25 psi oil pressure within seven seconds.
For Duramax applications, follow diesel-specific start procedure. Prime fuel system, confirm rail pressure, then crank.
Reset fuel, let engine fire. Don't rev. Watch scan tool for first five minutes.
Drive Cycle and Readiness
For Vortec / LT-family applications, plan for 50–150 miles of mixed driving before all OBD-II monitors set ready.
For Duramax applications, plan for substantially longer drive cycle due to DPF regen verification requirements.
What Separates Clean GMC Installs
Clean grounds. Careful connector handling. Pre-crank sensor verification. Disciplined drive cycle completion. Sourcing from suppliers who document harness compatibility upfront. The GMC engines in our catalog specify year ranges and platforms each unit is compatible with.
