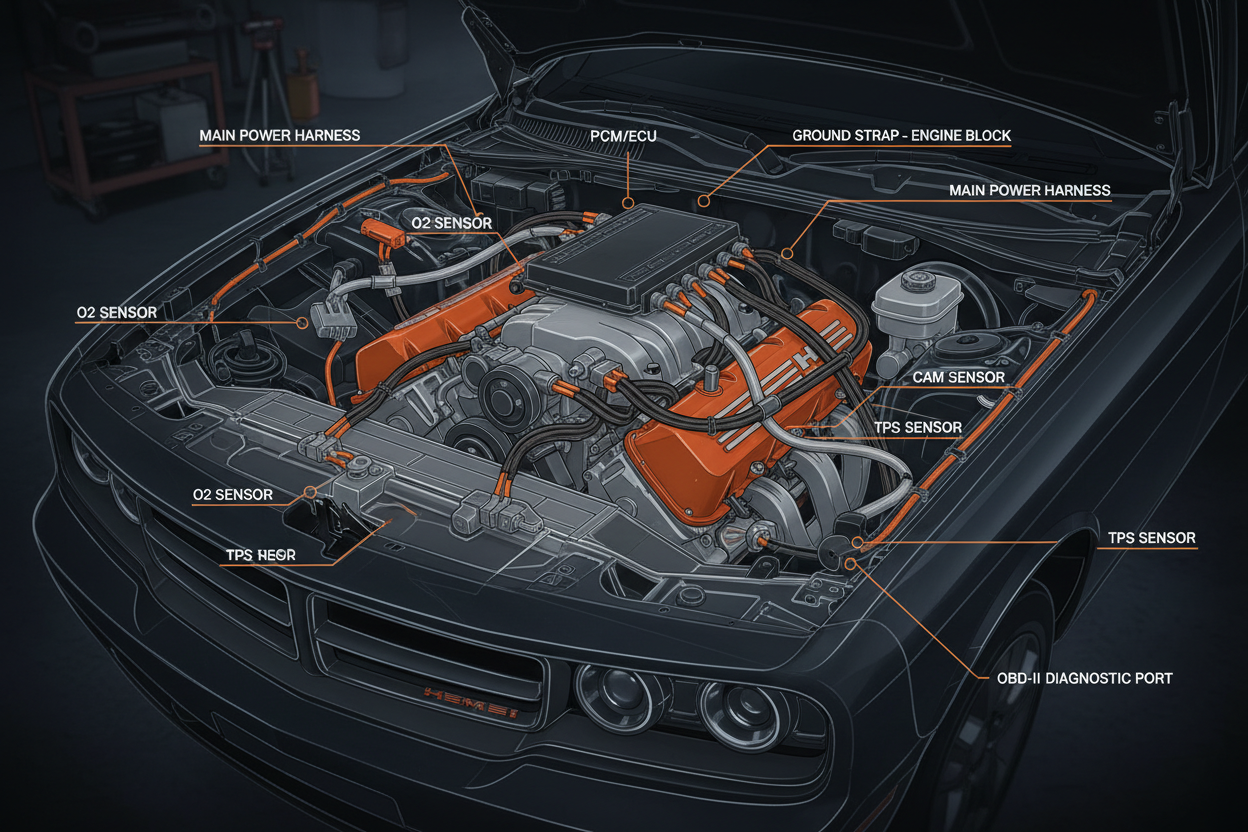

The mechanical side of a Dodge engine install is the part most shops feel comfortable with. The electrical side is where projects stall. Dodge wiring isn't unusually complicated by industry standards, but it has its own Chrysler-pattern conventions, and modern Dodge applications run more electrical communication between engine and vehicle than the platform's brute-force reputation might suggest. A mechanically perfect install can still refuse to start, throw cascading codes, or fail to clear inspection if the wiring and ECU work isn't right.
Here's the playbook our techs use to keep Dodge engine swaps from spending an extra week on the diagnostic lift.
What the Dodge PCM Is Actually Doing
Modern Dodge engines don't operate independently. The PCM is one of multiple modules on the CAN bus network, all communicating constantly. The transmission control module needs engine torque data for shift management on the various automatics behind Dodge engines. The ABS module compares wheel speed against engine RPM. The body control module needs to recognize the engine. The instrument cluster needs sensor data for the driver display.
On HEMI applications with MDS, the MDS control logic adds another layer. The cylinder deactivation system depends on accurate manifold pressure data, accurate cam and crank position data, and proper communication between the PCM and the MDS solenoid pack. A wiring fault that affects any of those produces immediate driveability issues.
On Cummins diesel applications, the additional control modules — high-pressure fuel pump control, injector drivers, EGR control, on emissions-equipped variants the DPF regen and SCR systems — all add wiring complexity beyond what gasoline engines need.
A wiring fault on a Dodge rarely produces just one symptom. A bad ground at the engine block can cause no-crank, transmission shift errors, ABS warnings, and HVAC glitches simultaneously. Getting the wiring right the first time is the cheaper option.
Battery, Grounds, and Power Supply
Replace battery cables that show corrosion, fraying, or heat damage. Used cables from a vehicle with prior engine problems have often spent time under high-resistance load.
Engine grounds matter on Dodges. Most modern Dodge engines have three to five ground connections: main battery ground to the block, body ground from the engine bay to the firewall, chassis ground at one or both frame rails, sometimes additional grounds at the cylinder head and alternator bracket. For Cummins applications, ground connections multiply due to the diesel-specific electrical needs and the heavier starter motor draw. Every ground needs cleaning to bare metal, a fresh terminal, dielectric grease on the contact face, and proper torque.
Loose or corroded grounds produce the largest single category of intermittent post-swap Dodge electrical problems. Clean grounds eliminate the whole category.
Connector Discipline
Dodge wiring harnesses use Chrysler-pattern connector locks — primary press-tab plus secondary slide or pull lock that must be released before the primary tab. Forcing a connector with the secondary lock set breaks the locking mechanism.
During removal, label every connector with painter's tape and a sharpie. Photograph every connector in place and the routing of the harness through the engine bay.
For HEMI applications with MDS, the MDS solenoid pack connector deserves particular attention. The MDS connectors on the engine top use a similar pattern to other engine connectors but are easy to misroute on reinstall. Label, don't memorize.
For Cummins applications, the injector connectors deserve special attention. Each injector has its own connector, and cross-routing injector connectors produces immediate misfire patterns that can be hard to diagnose without knowing what happened.
The Main Engine Harness Connection
Most modern Dodge applications route the engine harness through a bulkhead connector at the firewall. This is the single most important connector on the entire installation.
Inspect both halves before mating. Look for pushed-back pins, corrosion, water intrusion, heat staining. A bulkhead with even one bad pin produces faults that look mechanical — misfires, no-starts, ABS warnings — because the affected circuit's signal is intermittent.
Mate the bulkhead with even pressure across the connector face. Don't use the locking lever to force misaligned connectors together. Confirm visual alignment first, then engage the locking mechanism. Set the secondary lock.
Year-Mismatched Swap Considerations
If you're installing an engine from a different model year, the harness compatibility check is critical.
Same-engine-family swaps within a small year range generally have plug-and-play compatibility. Same-family swaps across larger year gaps often do not — Dodge revised connectors and pin assignments multiple times across HEMI, Pentastar, and Cummins production runs.
The clean approach for year-mismatched same-family swaps is to use the harness from the donor engine and address the body-side connection through a documented adapter or careful pin-by-pin verification. Trying to mate a different-year engine to the vehicle's existing harness without verification is how multi-week troubleshooting projects start.
HEMI Swap Considerations
HEMI swaps into vehicles that didn't originally have HEMI engines are an active category in the Dodge enthusiast world. These swaps typically require specialized wiring harness work — either a HEMI-swap-specific harness adapter from a specialist supplier (Howell, Painless Performance, etc.) or a complete engine harness from the donor vehicle that connects through a custom adapter to the chassis harness.
For HEMI swaps into older Chrysler-platform vehicles, standalone ECUs from companies like Holley (Terminator X, HP EFI) are common solutions. These bypass the original-vehicle electrical compatibility questions but require complete configuration and tuning work.
PCM Programming and Calibration
The PCM side of a Dodge engine swap depends on what changed.
Same-year same-family engine replacement: the existing PCM usually accepts the new engine without reprogramming. Clear stored fault codes, complete the readiness drive cycle, and the PCM adapts to the new engine over the first few hundred miles.
Same-family swap across years: the PCM may need reprogramming with a Chrysler wiTECH dealer-level tool or with aftermarket tools like HP Tuners or DiabloSport. Lincoln-specific calibrations differ from Ford calibrations even when the engine is mechanically identical; the same principle applies for Dodge versus Chrysler badge differences — don't substitute calibrations across badges.
Platform-mismatched swaps: a re-flashed PCM or standalone aftermarket ECU is required. This is custom work and a specialist who knows the swap is non-negotiable.
Security Module Considerations
Dodge vehicles use Chrysler's security system, which prevents the engine from starting unless the PCM recognizes the body-side security module's signal. After an engine swap involving a PCM change, the security system can lock the engine out of starting until the modules are re-paired.
For same-engine same-vehicle swaps where the original PCM stays in place, this rarely creates an issue. For swaps where a different PCM is installed, the re-pairing is typically a Chrysler dealer procedure or a specialized shop with wiTECH programming capability. Plan for it in advance.
The First Crank Procedure
Before turning the key, do an electrical pre-flight. Scan tool connected, key on engine off. Verify every sensor the PCM expects is reporting a sensible value. Coolant temp matches ambient. Intake air temp matches ambient. Oil pressure reads zero. MAP reads atmospheric pressure. All O2 sensors read inactive values. Crank and cam position sensors present in the data list.
For the first crank, pull the fuel pump relay and crank for ten to fifteen seconds to build oil pressure. HEMI engines build pressure quickly when oil galleries are primed — at least 25 psi within seven seconds.
For Cummins diesel applications, the start procedure is different. Prime the fuel system through the priming pump. Confirm rail pressure builds on the scan tool. Then crank.
Reset fuel and let the engine fire. Don't rev. Watch the scan tool for the first five minutes of idle. Dodge fuel trims should settle within plus or minus 5 percent for short-term trim once warm.
Drive Cycle and Readiness
For OBD-II readiness on a Dodge, the drive cycle involves a cold start, several minutes at idle, mixed-speed driving in the 25–55 mph range, sustained highway driving at 55–65 mph for at least 10 minutes, and a deceleration phase.
For HEMI applications with MDS, additional drive cycle steps may be needed to set the MDS-specific monitors. The scan tool data shows which monitors haven't yet completed.
For Cummins diesel applications, the readiness cycle is meaningfully different and longer. DPF regeneration on emissions-equipped 6.7L applications requires specific operating conditions. Plan accordingly.
Plan for 50–200 miles of mixed driving before all monitors set ready on gasoline applications, longer on Cummins applications.
What Separates Clean Dodge Installs
The wiring and ECU side of a Dodge engine installation is methodical work. The installers who consistently produce clean swaps don't have secret techniques — they don't skip the boring parts. Clean grounds. Careful connector handling with secondary locks set. Pre-crank sensor verification. Disciplined drive cycle completion.
And they source engines from suppliers who document harness compatibility upfront. The Dodge engines in our catalog specify year ranges and platforms each unit is compatible with, which removes uncertainty before the install starts. The electrical work is much easier when the engine that showed up matches what the listing said it would.
